Plex
PLEX μSDM-200 2.8" Micro Display
PLEX μSDM-200 2.8" Micro Display
Regular price
$699.00 USD
Regular price
Sale price
$699.00 USD
Unit price
/
per
Couldn't load pickup availability

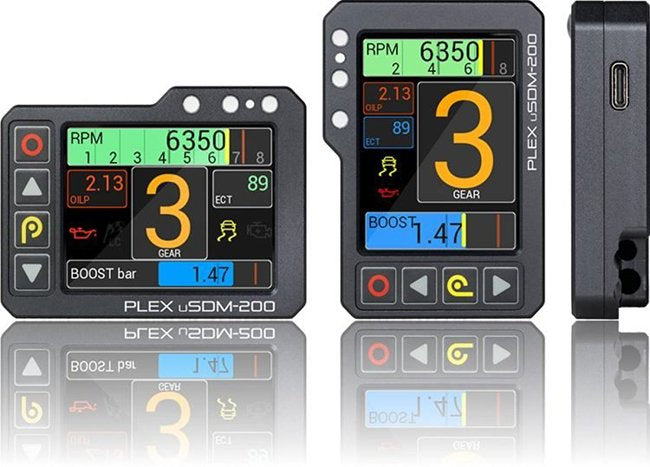

Introducing the 2nd Gen PLEX μSDM Micro Display, a small but ultra versatile 2.8” display for motorsport and automotive applications. The new PLEX μSDM-200 (or uSDM-200) succeeds the discontinued μSDM-100 & μSDM-102, bringing rich color, fully re-designed electronics, customizable UI & a weather protection enclosure. Can be upgraded to the DL version to add 2 multi-function inputs.
KEY FEATURES
2.8'' Sunlight Readable High Contrast TFT Display
Very bright (900 nits), high contrast IPS display (viewable from all angles) with auto-dimming allows for uncompromised viewing ergonomics.
Predictive Lap Timing with Instant Driver-Feedback
Built-in concurrent multi-GNSS module (all satellite systems) and 6-axis motion sensor enable effective lap timing with seamless driver-feedback for improvement gains.
Fast and more Powerful Processor
New more powerful CPU allows for independent high speed processing of the various sub systems (display, can bus decoding, can bus transmit, math channels, lap timing etc.) so that high performance is guaranteed even with complex configurations.
Quick-Glance™ UI
Proprietary UI design ensures optimal viewability & reduced driver distraction via optimized color & contrast for enhanced driver’s peripheral vision.
Always-on Performance Meter Functionality*
Integrated performance meter functionality that runs constantly in the background calculates vehicle acceleration & deceleration performance
Industrial Quality Configurable Keypad
4-button industrial quality membrane keypad with excellent tactile feedback and custom functions to suit any user requirement. Suitable also for gloves.
Auto Page Changing
Hands-free display page changing based on user-defined conditions such as engine status and/or load to help you keep your attention focused
Built-in Datalogging Memory
Fully configurable and seamless logging of multiple data channels for in-depth examination on the free and intuitive PLEX PDA-WIN Analysis & Visualization Software.

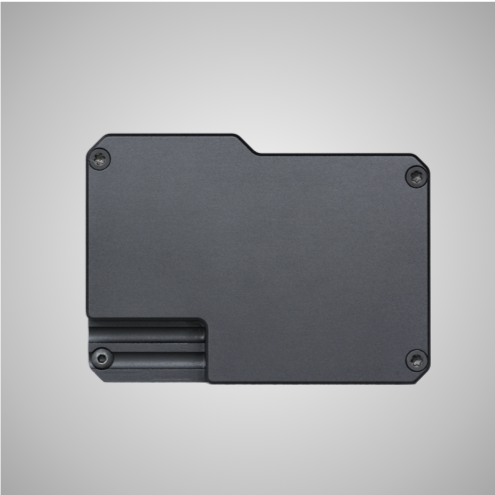

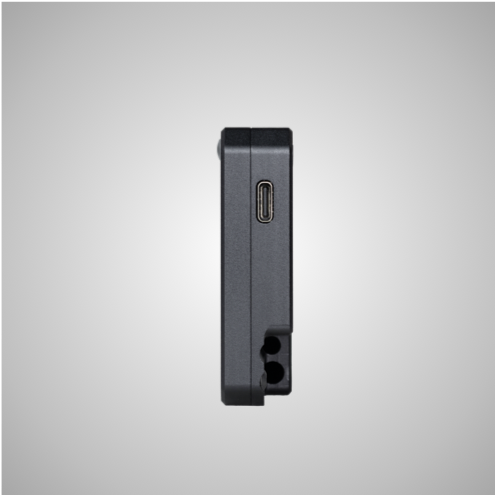

Rugged Weather Sealed Enclosure
High-quality anodized CNC enclosure with IP64 rated water & dust protection. Flat back-side with no protruding connectors or wires enables easier mounting.
