18Ga Shielded Cable

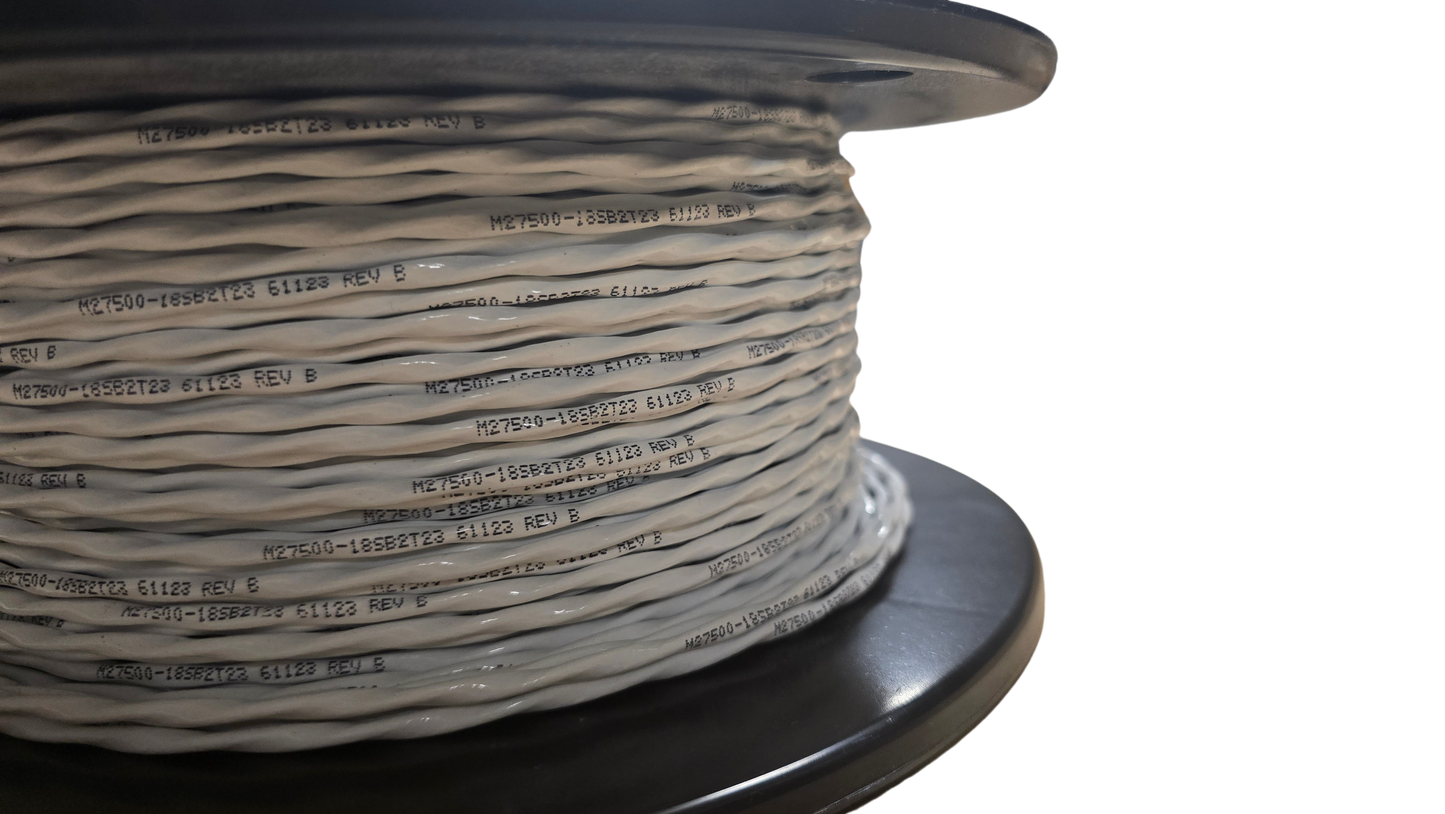

M27500 2-Conductor Shielded Cable Overview

Description:
M27500 2-Conductor Shielded Cable is a highly durable, MIL-Spec wire, frequently used in motorsport applications and other critical environments due to its robust construction and reliable performance under demanding conditions.

Available Specifications:

• Wire Gauge: 18 AWG
• Conductors: 2, Tinned Copper
• Shielding: Tin-Plated Round Shield for EMI protection
• Jacket Material: ETFE (Ethylene Tetrafluoroethylene) for toughness and high-temperature resistance
• Insulation: Fluoropolymer Cross-linked Modified ETFE

Performance Features:

• Temperature Rating: Up to 150°C
• Voltage Rating: 600 Volts
• Insulation Thickness: Minimum 0.005"
• Insulation Resistance: 5,000 megohms per 1,000 feet (minimum)
• Dielectric Strength: Tested at 8.0 kV peak during impulse dielectric testing

Applications:

• Motorsport critical circuits
• Aerospace systems
• High-reliability environments requiring shielded, high-temperature wire
