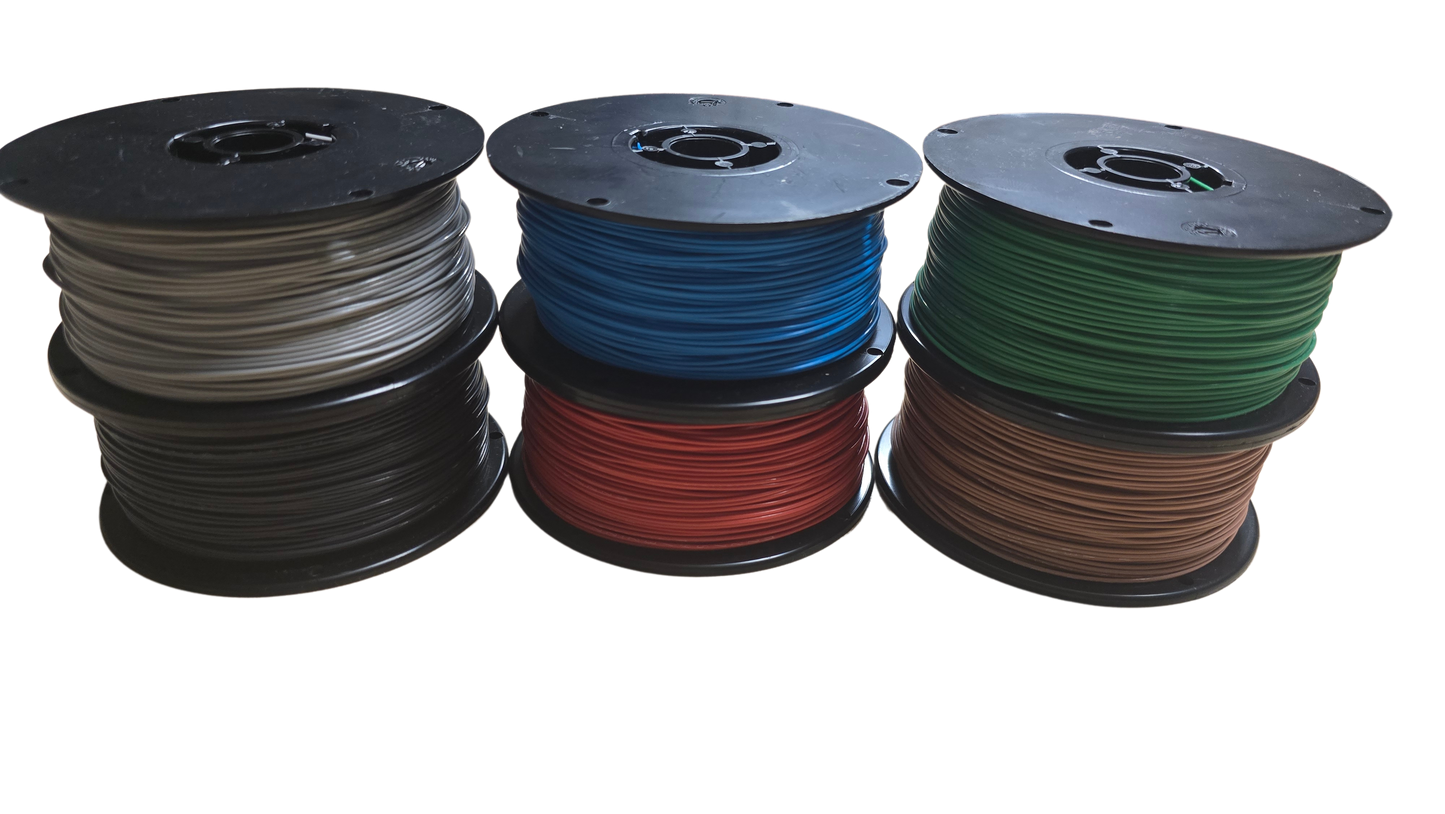

22Ga Tefzel Wire Per Foot

M22759/32 Tefzel Wire Overview

Description:
M22759/32 Tefzel Wire is a lightweight, MIL-Spec wire designed for motorsport and other high-performance applications. It is renowned for its durability, resistance to environmental factors, and high-temperature performance.

Available Specifications:

• Wire Gauges: 22 AWG
• Conductor Material: Tinned Copper
• Insulation Material: Fluoropolymer Cross-linked Modified ETFE (Tefzel)

Performance Features:

• Temperature Rating: Up to 150°C
• Voltage Rating: 600 Volts
• Insulation Thickness: Minimum 0.005"
• Insulation Resistance: 5,000 megohms per 1,000 feet (minimum)
• Dielectric Strength: Impulse dielectric tested at 8.0 kV peak

Key Benefits:

• Highly resistant to abrasion and environmental factors, including chemicals and UV exposure
• Lightweight and compact, suitable for high-density wiring in motorsport
• Consistent performance in harsh conditions

Applications:

• Motorsport wiring harnesses
• Aerospace and defense systems
• High-temperature, high-reliability circuits
