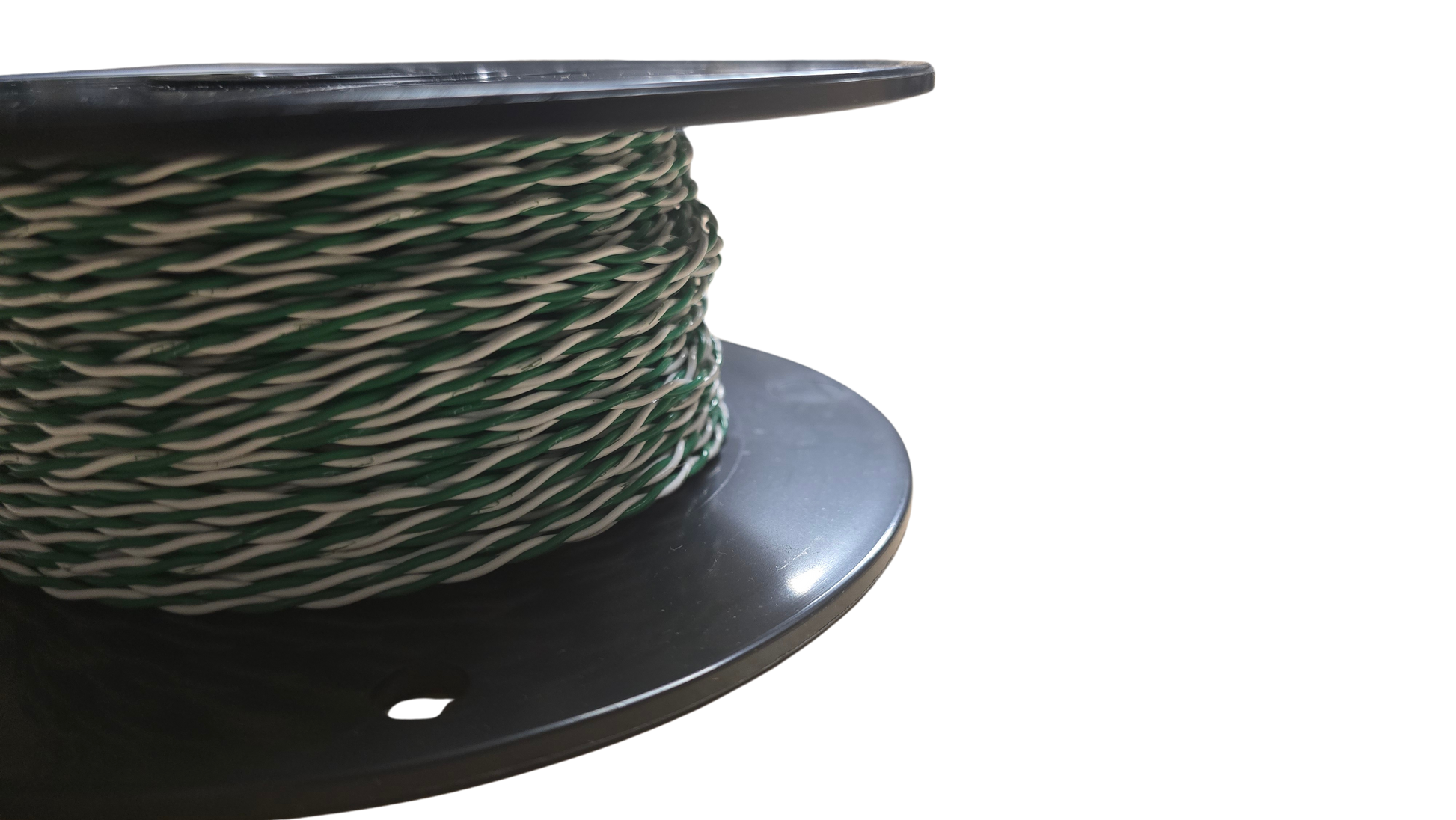

22Ga Twisted Pair CAN wire

M22759/32 Tefzel Wire (22-24 AWG) Overview

Description:
This variant of M22759/32 Tefzel Wire is tailored for motorsport applications, offering a white/green industry-standard color pairing and a specified twist rate optimized for critical installations. It provides exceptional durability and performance under demanding conditions.

Available Specifications:

• Wire Gauges: 22 AWG to 24 AWG
• Color Pairing: White/Green for industry-standard identification
• Twist Rate: Specified for optimal performance in motorsport applications
• Conductor Material: Tinned Copper

Performance Features:

• Temperature Rating: Up to 150°C
• Voltage Rating: 600 Volts
• Insulation Material: Fluoropolymer Cross-linked Modified ETFE (Tefzel)
• Insulation Thickness: Minimum 0.005"
• Insulation Resistance: 5,000 megohms per 1,000 feet (minimum)
• Dielectric Strength: Impulse dielectric tested at 8.0 kV peak

Key Benefits:

• Industry-standard white/green color coding simplifies wiring identification
• Enhanced durability with superior resistance to abrasion, chemicals, and environmental factors
• Lightweight and compact, ideal for motorsport harnesses
• Optimized twist rate for improved electromagnetic interference (EMI) performance

Applications:

• Motorsports wiring harnesses requiring high reliability
• Aerospace systems
• Critical circuits in harsh environments
