1 Stop Speed

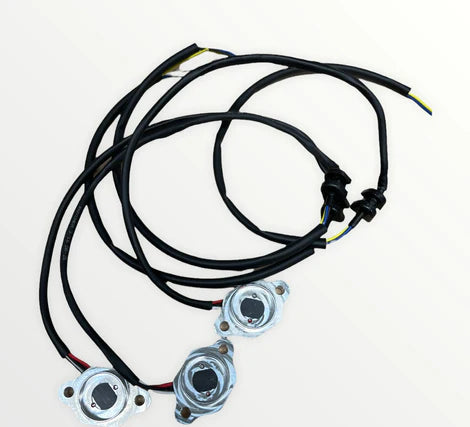

Analog Gear Position Sensor

Analog Gear Position Sensor

Regular price $239.00 USD
Regular price Sale price $239.00 USD
Sale Sold out

1999-2021 Suzuki Hayabusa and 2001-2016 GSXR 1000 Analog Gear Position Sensor



Eliminates the erratic signal from an OEM gear position sensor

Provides a clean voltage output relating to a full 360° of shift drum rotation

Positive gear identification in your standalone ECU

Allows improve diagnosis of shifting issues by directly monitoring shift drum rotation

Capable of being used for “Shift until next gear” shift cut strategies

Installation

Remove Clutch cover and clutch basket assembly

Remove OEM gear position sensor and loosen wire retaining clip fasteners

Remove contacts and springs from shift drum (1999-2007 models only)

Install shift drum rotor magnet

Install sensor, ensuring wire routing clips and pass through grommet are positioned securely

Reinstall clutch basket and cover assembly

Connect wiring and calibrate sensor



Wiring Connections

 Wire Color
Function
Yellow +5v Sensor
Brown Sensor Ground
Blue Analog Output Signal



Approximate sensor output calibration is shown below. For best results, the sensor should be installed and connected to your standalone and calibrated in place.

1999-2021 Suzuki Hayabusa Calibration
Gear
Output Voltage
1
4.22
N
3.84
2
3.52
3
2.85
4
2.20
5
1.52
6
0.81
