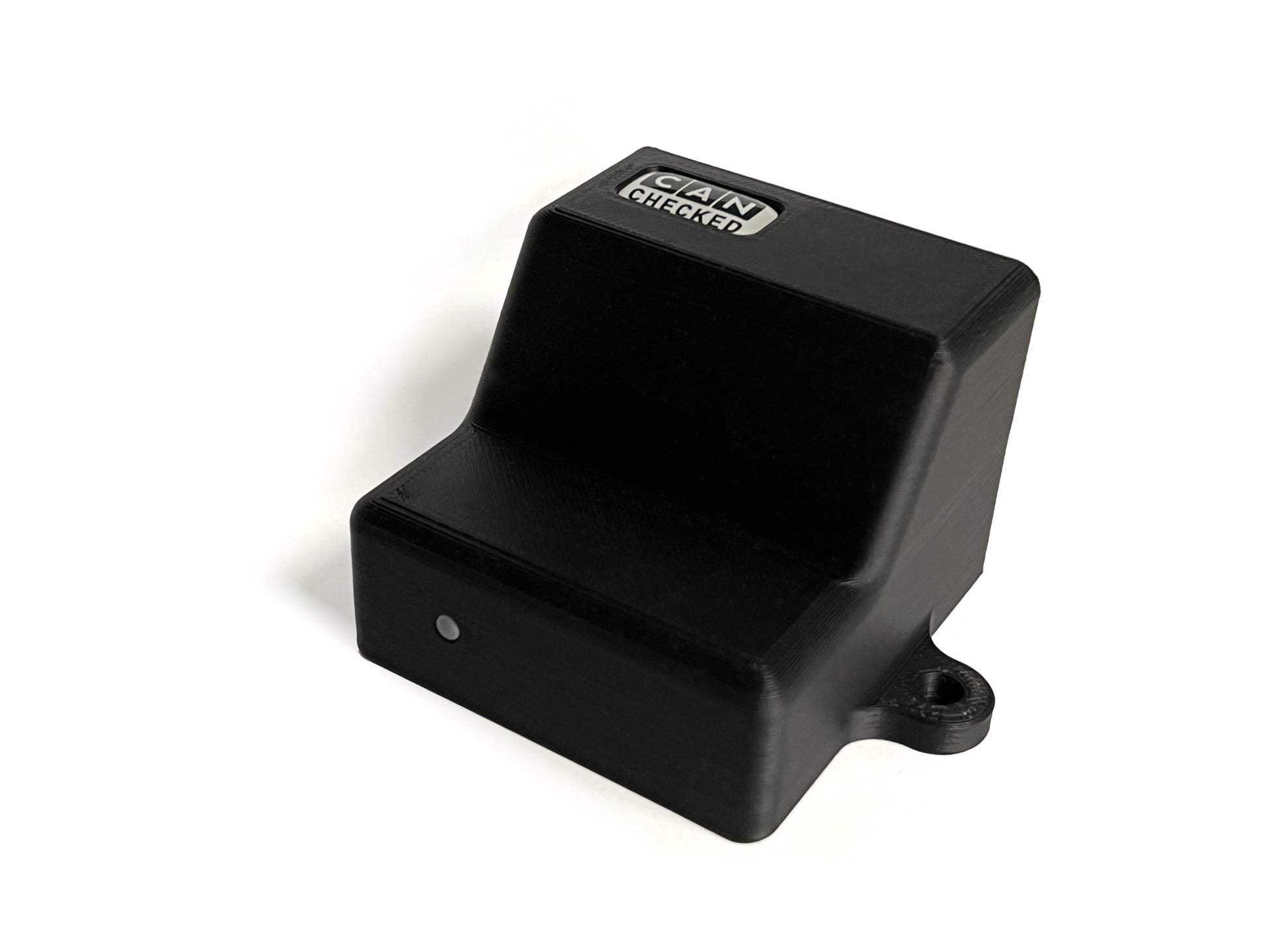

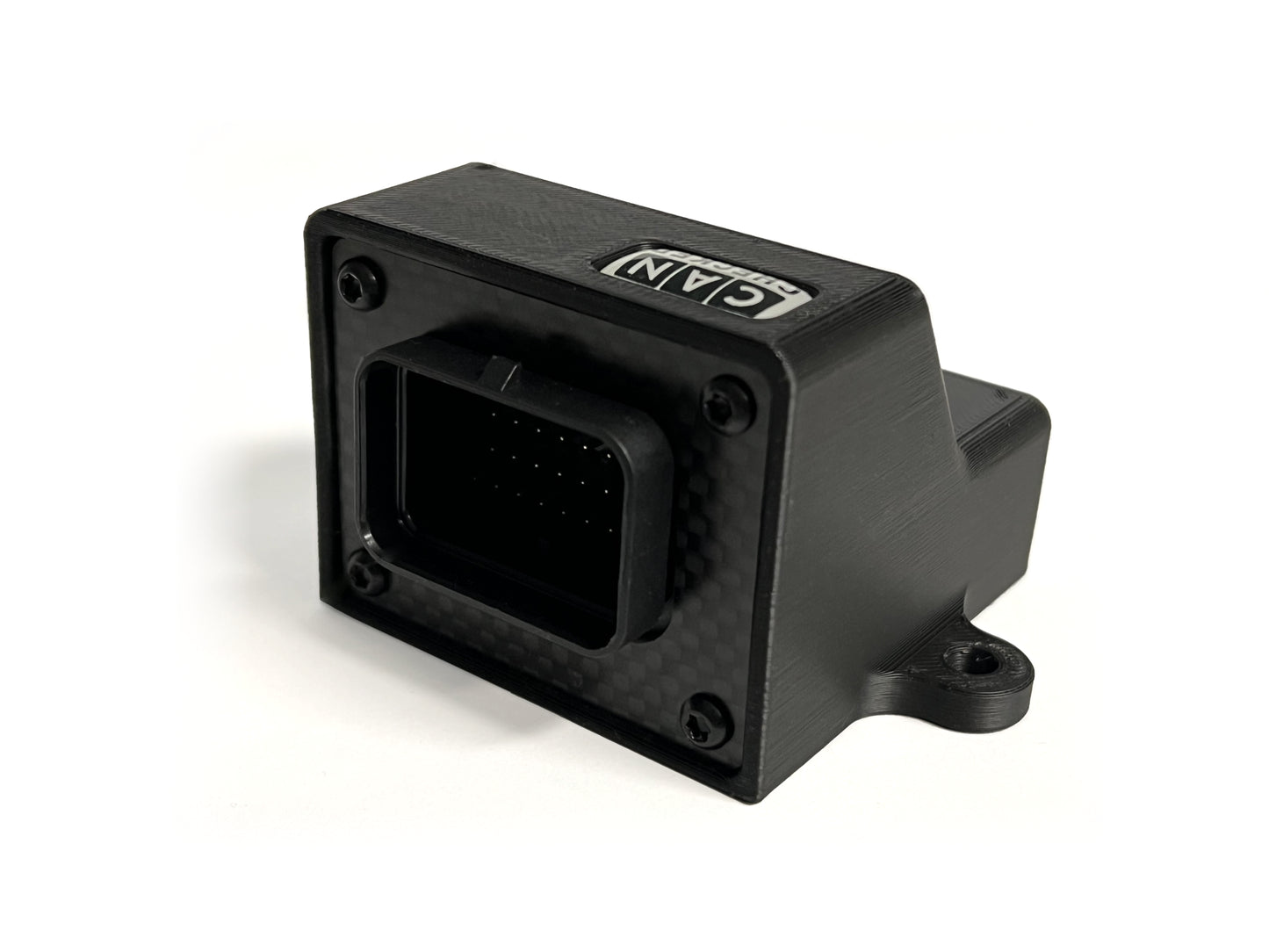

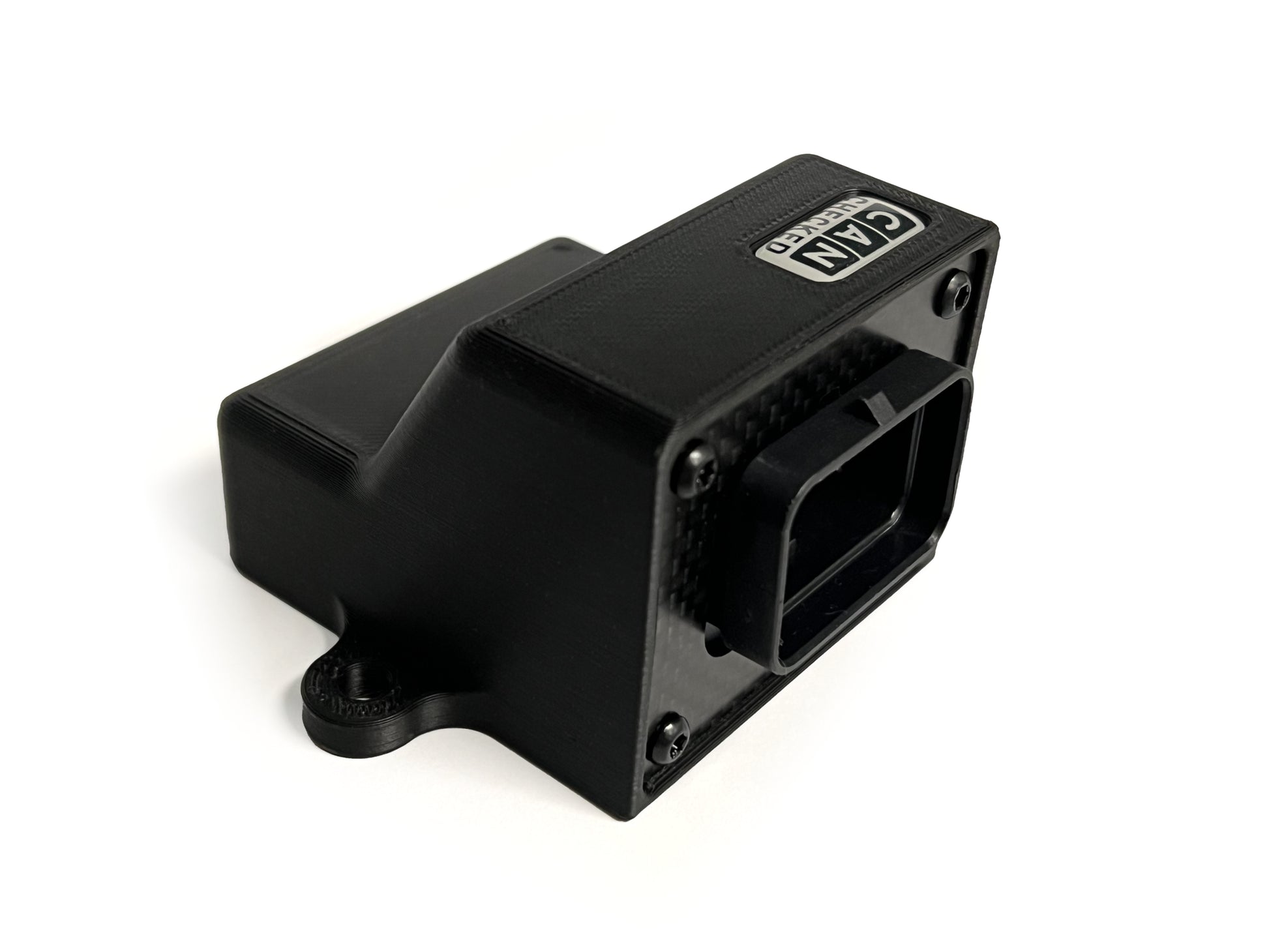

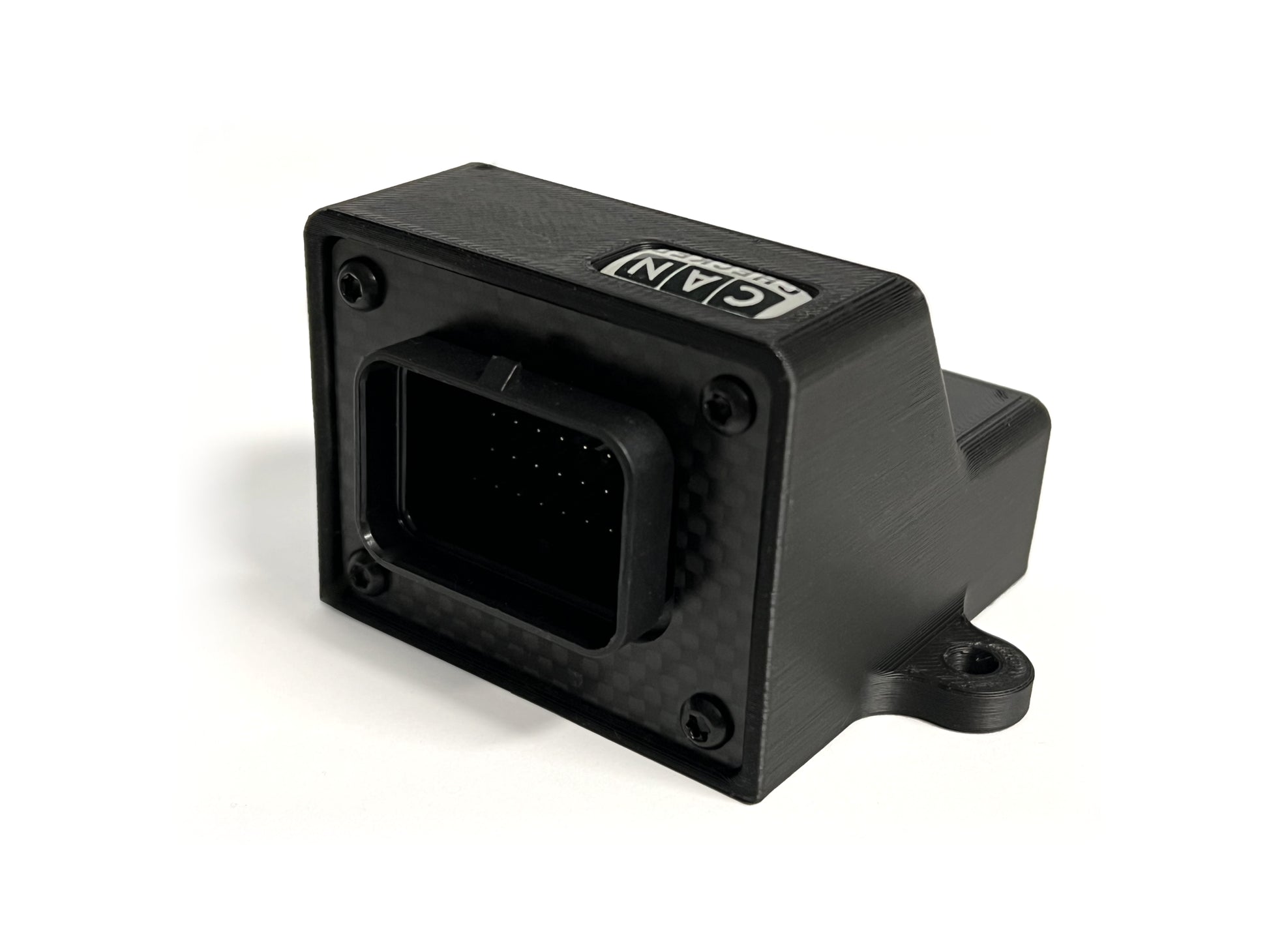

The MCE18 is the optimal solution if you only have a limited number of inputs.
It has already been tested with the following devices: CANchecked MFD28/MFD32/MFD32S MaxxECU (MaxxECU save file and instructions available) Ecumaster (emulates Switchboard V3) LinkECU (can streams available for import) Haltech (emulates an IO Extender A+B or only A or B) Motec (emulates an E888 – 2 pieces also possible!) AIM
The MCE18 features: 9 analog inputs (0-5V) 8 digital inputs (on/off) 3 digital outputs (on/off LOW SIDE 0.5A) 4 frequency inputs (turbo speed or Hall sensor (wheel speed); one input is reconfigured for this purpose) One frequency input usable for ethanol (ethanol content and ethanol temperature)
