Rotary Encoder Wheel Speed Sensor and Kit

The RE22 Rotary Encoder Wheel Speed Sensor provides 40 pulses per revolution of the countershaft sprocket for precise rear wheel speed data logging and speed-based traction control.

The RE22 is a compact, high-speed rotary magnetic encoder designed for use in harsh environments. The traditional design allows for easy integration into existing machines. The compact encoder body is just 22 mm in diameter and provides dirt immunity to IP53. The RE22 can be used in a wide range of applications, including marine, medical, print, converting, industrial automation, metalworking, and instrumentation.

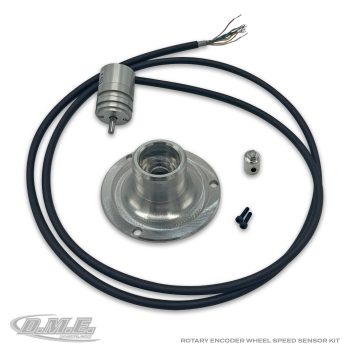

Rotary Encoder Wheel Speed Sensor Kit

• Kit Includes:
  • Wheel Speed Sensor
  • Billet Sensor Mount
  • Billet Drive Mount
  • 8mm Socket Hex Cap Screw
• Kit Requires: Robinson Industries Output Shaft Support Kit

SENSOR FEATURES

• Power supply 5 V
• Accuracy to ±0.3°
• High-speed operation to 30,000 RPM
• Compact – 22 mm diameter body
• Industry-standard absolute, incremental, and analogue output formats
• Simple integration
• RoHS compliant

SENSOR SPECS

• Max. resolution: 13 bit
• Accuracy: ±0.3°
• Maximum speed: 30,000 RPM
• Supply voltage: Vdd = 5 V ± 5 %
• Connection: ‘D’ type connector – 9 way Flying lead
• Outputs: Analogue sine/cosine, Incremental, Linear voltage, SSI
• Mass: Encoder unit 1 m cable (no connector) IP53 axial cable 68 g, side cable 60 g.
• EMC compliance: EN 61326
• IP protection: IP53
• Temperature: Operating: −40 °C to +120 °C
• Download Data sheet

Replacement Part –  Sensor Mount

• Mounts Sensor to Robinson Industries Output Shaft Support Kit
• Mount requires Kit, this should only be ordered individually as a replacement part.

Replacement Part –  Drive Mount

• Connects Sensor to Robinson Sprocket Nut.
• Requires 8mm Socket Hex Cap Screw to install. (Included in kit)
• Mount requires Kit, this should only be ordered individually as a replacement part.
